FCSCST1133Data Engineering Ecosystem

Step 11 · Generate and refine

Google Stitch

Generate interface concepts from natural-language prompts, then evaluate and improve the result.

STAI Design
Prompt-based UI

Describe the interface you need

Google Stitch is an experimental AI-powered design tool that can generate interface designs and front-end concepts from text or image prompts.

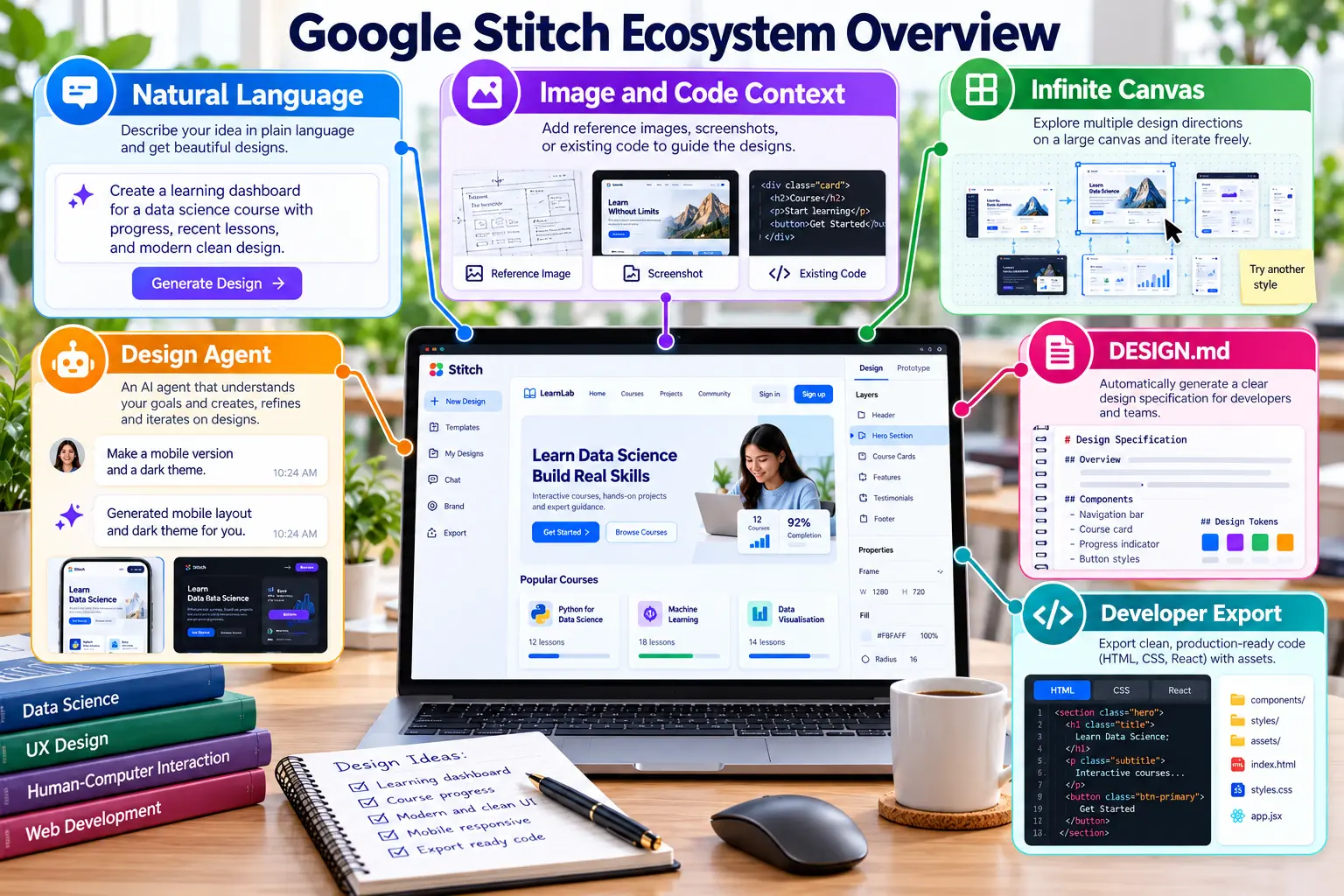

Google Stitch ecosystem for AI-assisted interface design
Stitch combines natural language, multimodal context, design exploration, reusable rules and developer export.

Current Stitch capabilities

AI-native canvasExplore several interface directions across a flexible canvas.
Multimodal contextUse text, images, existing interfaces and code as design evidence.
Design agentGenerate, critique and refine designs conversationally.
DESIGN.mdImport, export and reuse explicit design-system rules.
Figma transferMove a selected direction into Figma for structured refinement.
Developer exportExport interface code for human review and implementation.

Sign in and start a project

Open Stitch

Visit stitch.withgoogle.com.

Sign in

Use an eligible Google Account and complete any required verification or onboarding.

Create a project

Choose a web interface and begin with a detailed text prompt. Availability and features may vary by account.

Prompt framework

Create + system type + target users + required components + visual style + colour theme + responsive behaviour.

Create a responsive data engineering dashboard for university
students. Include cards for data sources, active pipelines,
failed jobs, processed records and recent activities. Use a clean
white background with maroon and gold accent colours. Provide clear
navigation and make the layout suitable for desktop and mobile.

Generate, evaluate and improve

Generate the first concept

Submit the prompt and review hierarchy, navigation, readability and component consistency.

Refine the prompt

Request specific improvements rather than starting again, for example: “Reduce empty space and improve the mobile card layout.”

Save evidence

Keep the final prompt and a clear screenshot. If sharing or export is available, retain the relevant link or exported output.

Compare with Figma

Identify three strengths and three improvements. Explain which design decisions you would transfer to your Figma prototype.

Add the evidence to README

## Google Stitch

### Prompt
> Create a responsive data engineering dashboard...

### Output
![Google Stitch dashboard](images/google-stitch-dashboard.png)

### Reflection
Describe three strengths and three required improvements.

Expected output

  • The final prompt is recorded.
  • A screenshot of the generated interface is stored in the repository.
  • A short comparison with the Figma design is included in README.

Evaluate AI-generated interface concepts

HierarchyCan users identify the main task immediately?
AccuracyDoes the interface satisfy the stated requirements?
ConsistencyAre colours, spacing and components used systematically?
AccessibilityAre labels, contrast and navigation understandable?
ResponsibilityHave unsafe assumptions or fabricated content been removed?
EvidenceAre the prompt, generated result and improvements documented?
!

Responsible AI disclosure: State that Stitch was used, retain the final prompt and explain the human decisions used to evaluate and improve the output.
